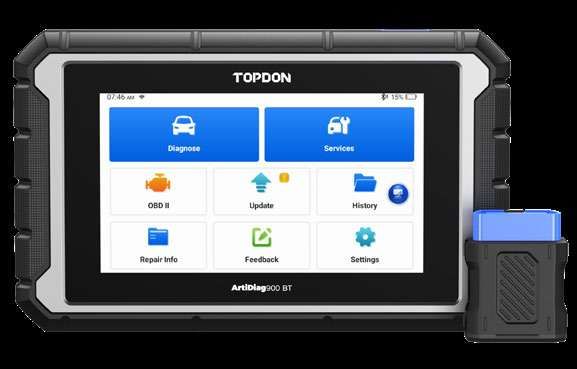

TOPDON ArtiDiag900 BT Comparison Table

Of TOPDON Mid-level Diagnostic Tools (ArtiDiag Series), what are their differences?

Here we will show you.

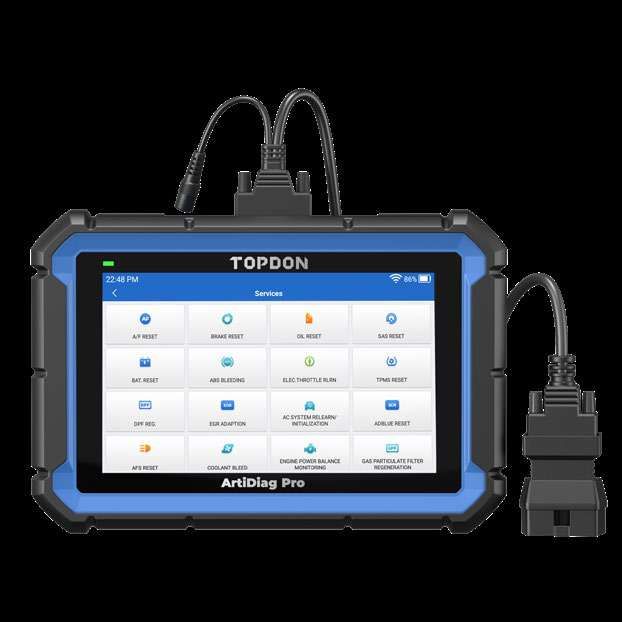

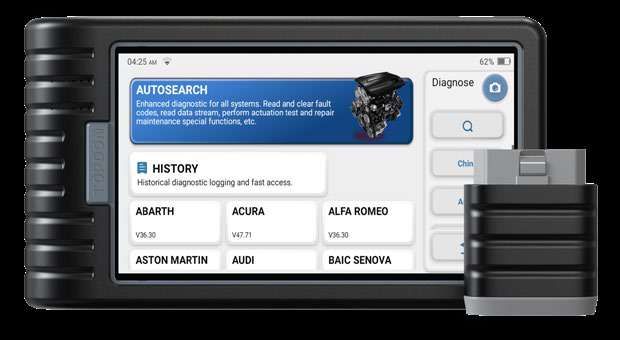

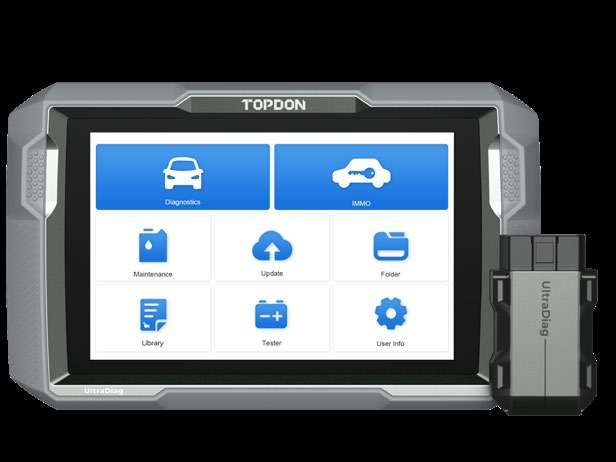

1.TOPDON ArtiDiag800 BT vs. ArtiDiag Pro vs. ArtiDiag900 BT vs. UltraDiag

Specification/ Model	ArtiDiag800 BT	ArtiDiag Pro	ArtiDiag900 BT	UltraDiag
Display	6-inch	7-inch	7-inch	8-inch
Memory	RAM 2G/ ROM 32G	RAM 2G/ ROM 32G	RAM 2G/ ROM 32G	RAM 2G/ ROM 32G
Battery	3100mAh	6100mAh	6300mAh	10000mAh
Full OBD2 Functions	√	√	√	√
Full System	√	√	√	√
AutoVIN	√	√	√	√
Bi-directional Control	×	√	√	√
Online Coding	×	√(VW/Audi/Skoda/Seat/Porsche/BMW/Mini)	√(VW/Audi/Skoda/Seat/Porsche/BMW/Mini)	×
Reset function	28	31	28	8
Vehicle Coverage	110+	100+	130+	65+
Software Update	Free	2 Years Free	2 Year Free	2 Year Free
Software Language	17	10	17	17

2.TOPDON ArtiDiag500 vs. ArtiDiag500S vs. ArtiDiag600 vs. ArtiDiag600S vs. ArtiDiag800

Specification/ Model	ArtiDiag500	ArtiDiag500S	ArtiDiag600	Ultra600S	ArtiDiag800
Display	5-inch	6-inch	7-inch	8-inch	7-inch
Memory	RAM 2G/ ROM 32G	RAM 2G/ ROM 32G	RAM 2G/ ROM 32G	RAM 2G/ ROM 32G	RAM 2G/ ROM 16G
Battery	3350mAh	1500mAh	3350mAh	1500mAh	6100mAh
Full OBD2 Functions	√	√	√	√	√
Full System	×(PCM/TCM/ABS/SRS)	×(PCM/TCM/ABS/SRS)	×(PCM/TCM/ABS/SRS)	×(PCM/TCM/ABS/SRS)	√
AutoVIN	√	√	√	√	√
Bi-directional Control	×	×	×	×	×
Online Coding	×	×	×	×	×
Reset function	6	5	8	8	28
Vehicle Coverage	67+	110+	67+	110+	72+
Software Update	Free	Free	Free	Free	2 Years Free
Software Language	12	17	12	17	10

Summary:

1)Only ArtiDiag Pro and ArtiDiag900 BT supports online coding

2)UltraDiag has the longest endurance

3)ArtiDiag Pro, ArtiDiag900 BT, and UltraDiag are tools with bi-directional control

4)Wired tablets enjoy free software update

5)ArtiDiag800 and tablets later support full-system diagnosis

Done! Which one do you prefer?
