One customer asked if the OBDSTAR DC706 6l80 pinout is wrong because it is different than the diagram on websites including Alldata? Is this a misprint?
There are new types of ECU with different diagram.
Check out possible pinouts and reviews.

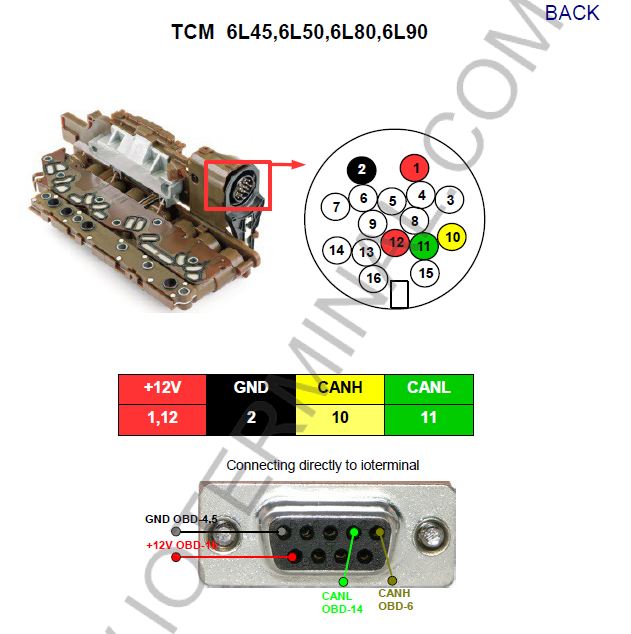

Custom ecm PINOUT:
Review:
1)just follow the pinout at customecm. I did and works correctly. I have OBD plug at the end, works with all the programmers and scan tools. Dont forget 120ohm resistor, and power switch on ignition power helps too
2) I made a quick one based off the customecm website and it worked fine. Cloned with DC706. Followed up with SPS just to clean up.

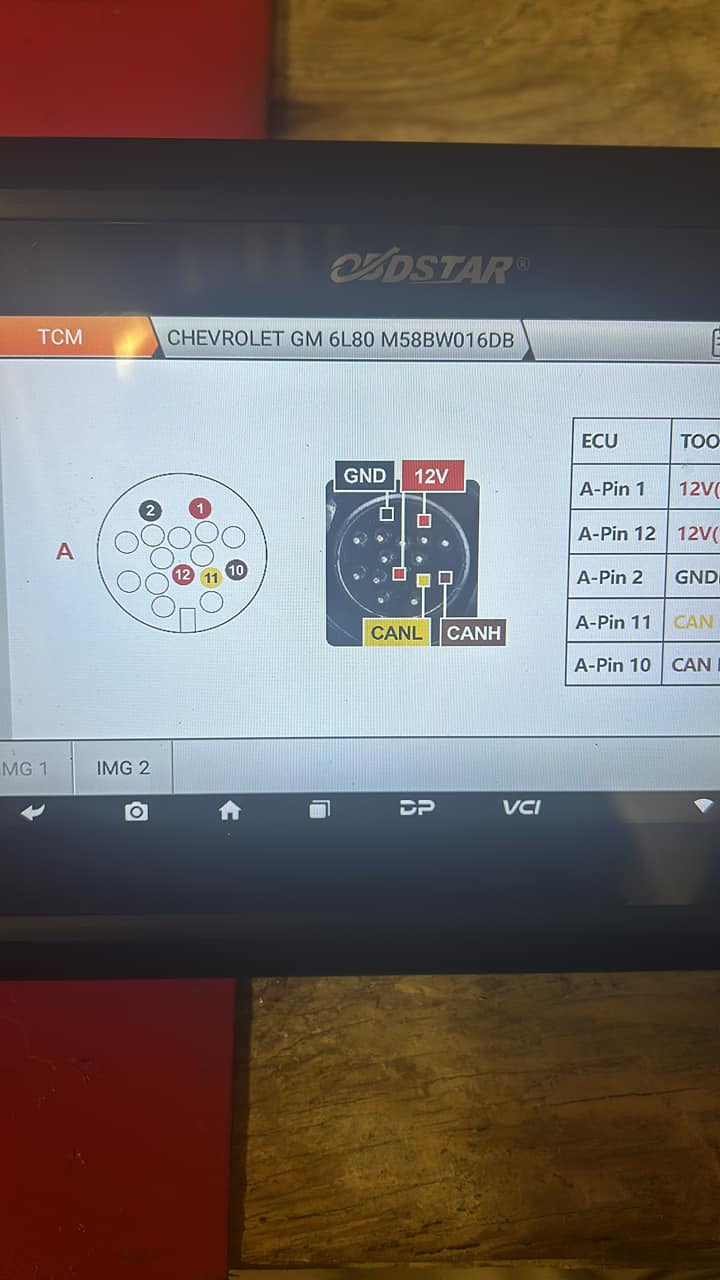

OBDSTAR PINOUT:
Review:
1)PIN1 and PIN2 works fine, same pinout from IO terminal
2) I’ve used the dc706 Pinout on the tool works great.

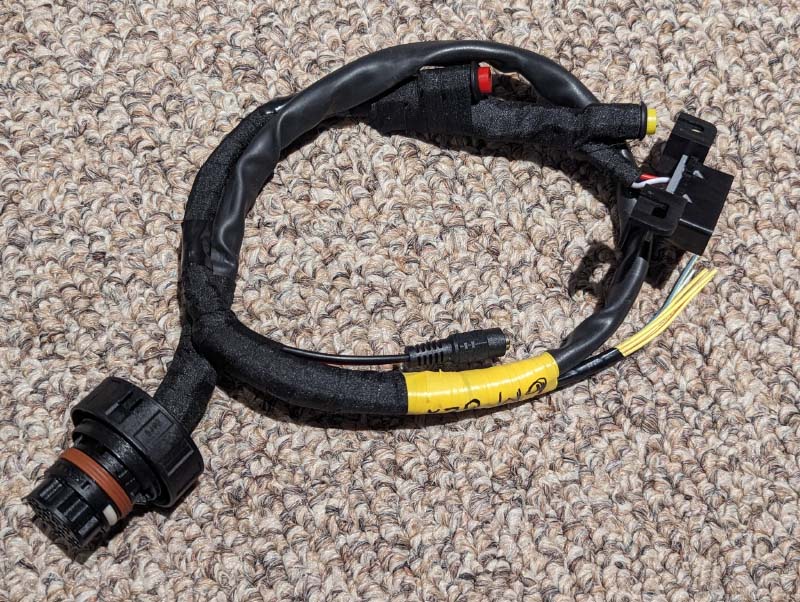

I/O Terminal PINOUT:
Review:
Before I made that adapter, I was using IO adapter, and IO has same pinout with 1 and 2 pin as OBDSTAR.
