How Lonsdor K518 PRO Program Nissan Ariya AKL?

This article is the instructions on Nissan Ariya AKL programming.

Tools:

Lonsdor K518 PRO

Nissan 40-pin BCM Cable (In Package)

Steps:

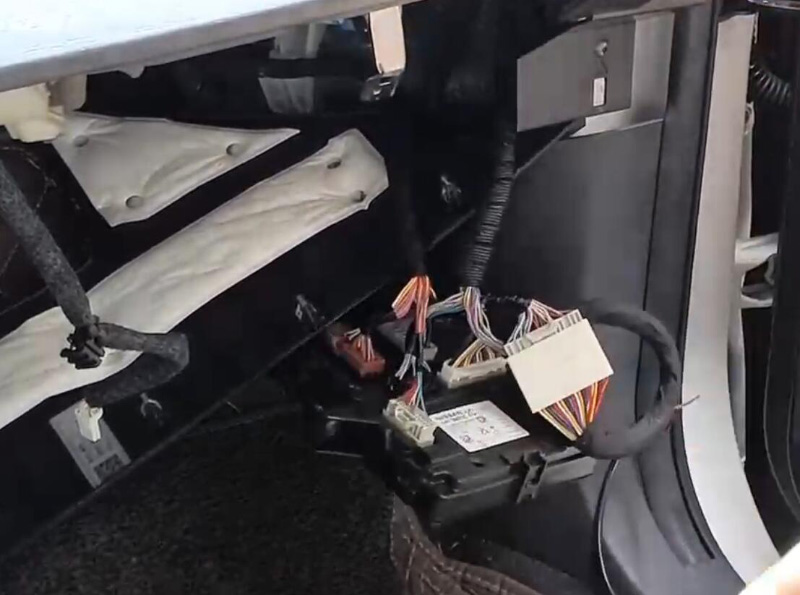

Find BCM module beside glove box on passage side.

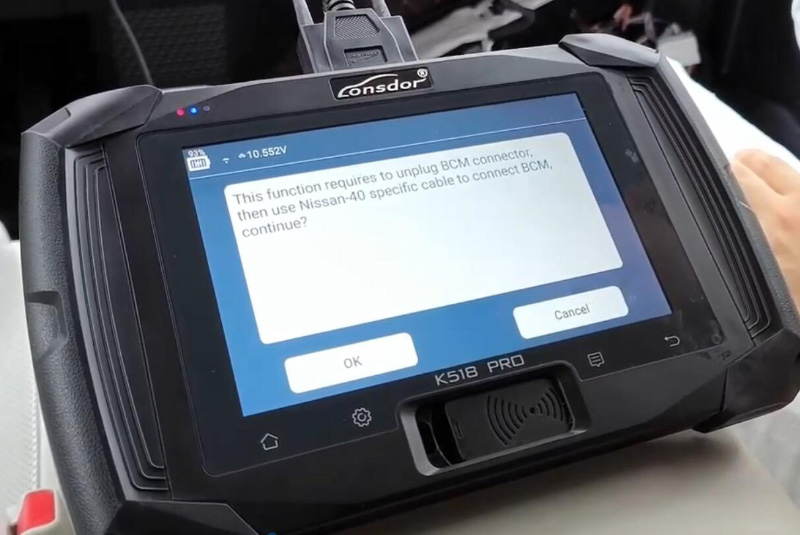

Connect 40-pin BCM Cable to BCM module.

Turn on K518 PRO,

Select

Push function>>IMMO & Remote>>NISSAN>>Select from vehicle>>Asia>>Ariya>>2022->>All smart key lost

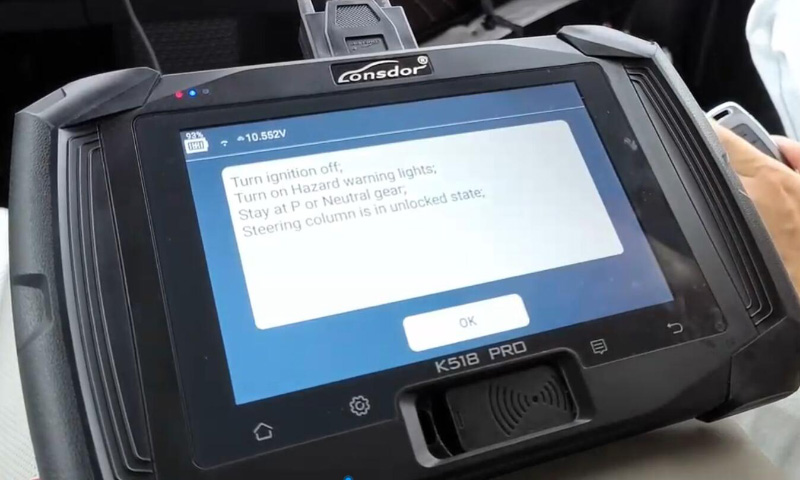

Follow steps.

Put new key close to start button.

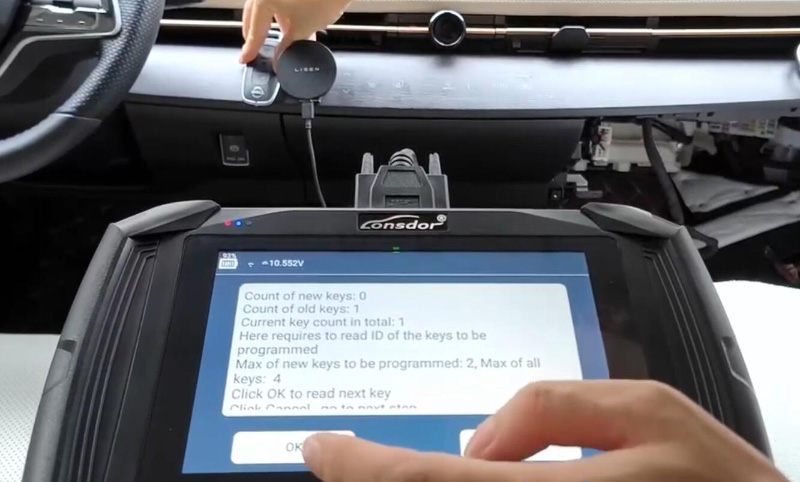

Read key info.

Read pin code.

Put new key close to start button again.

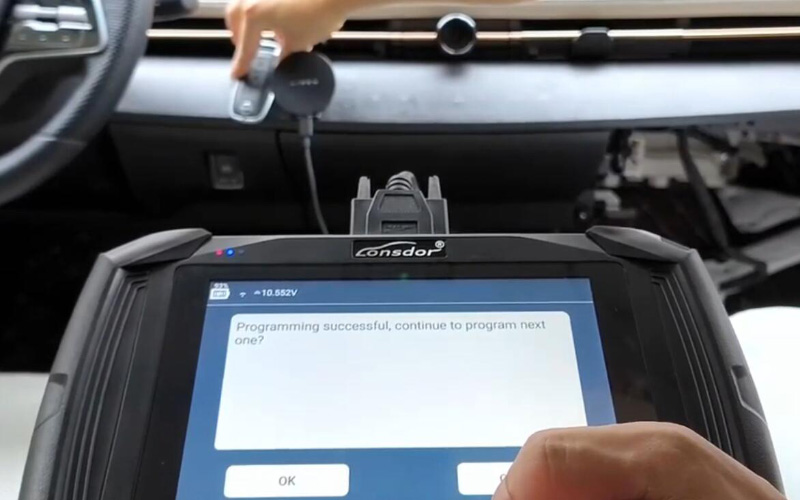

Program successfully.

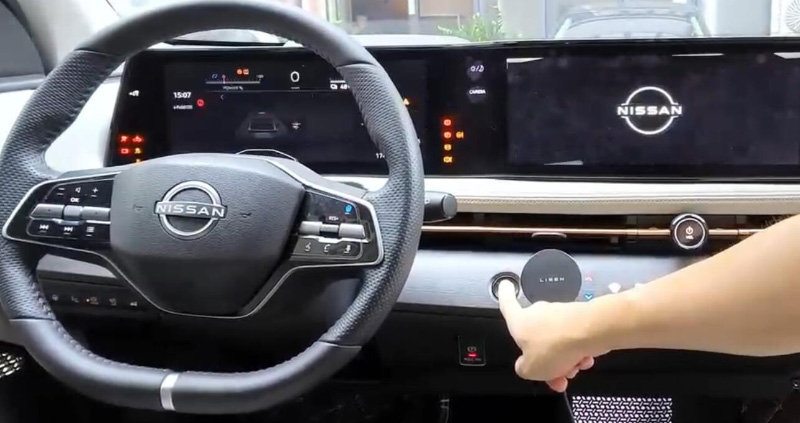

Test key.

Video:

Done! That’s how Lonsdor K518PRO program Nissan Ariya 2022 AKL.
